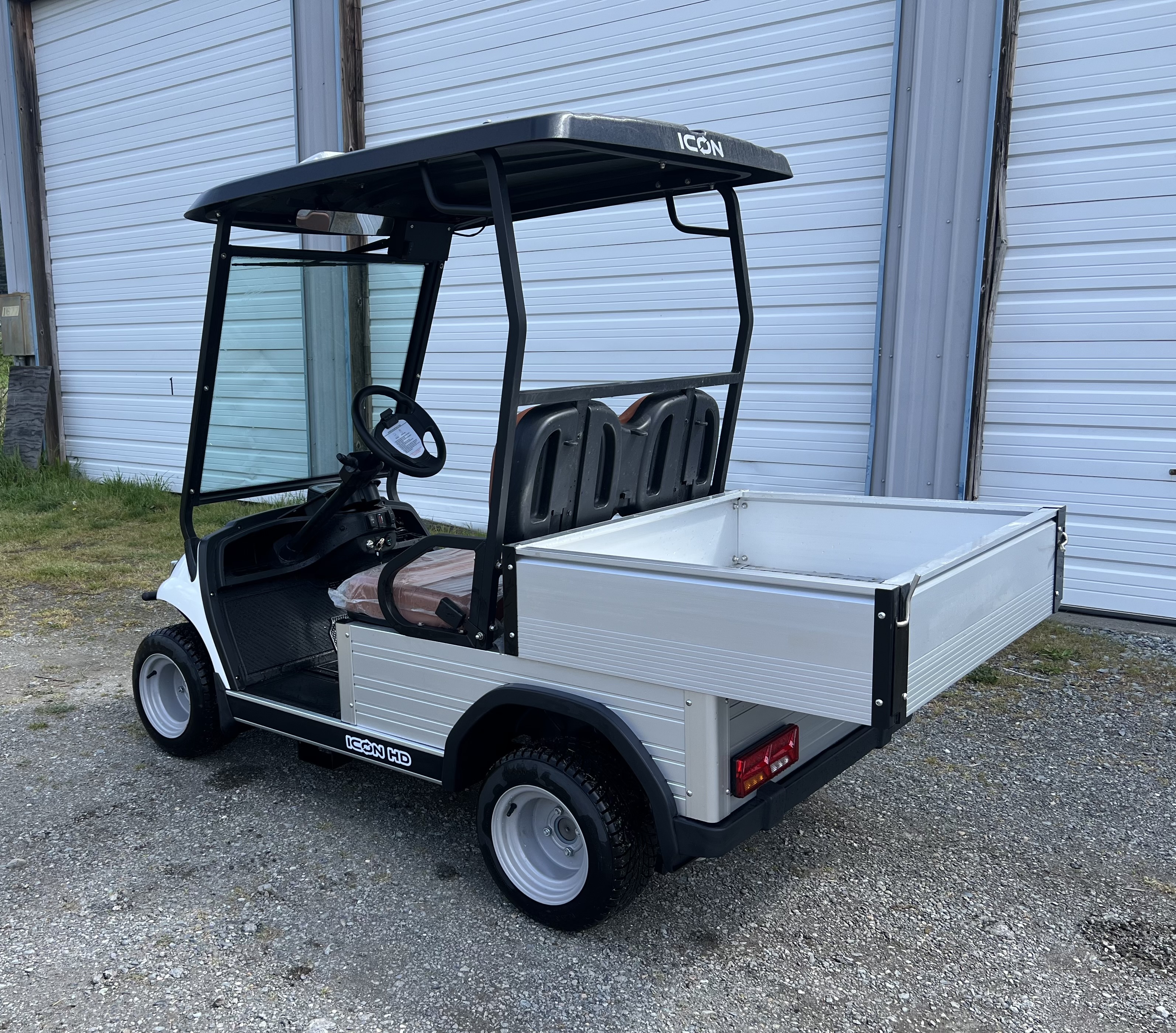

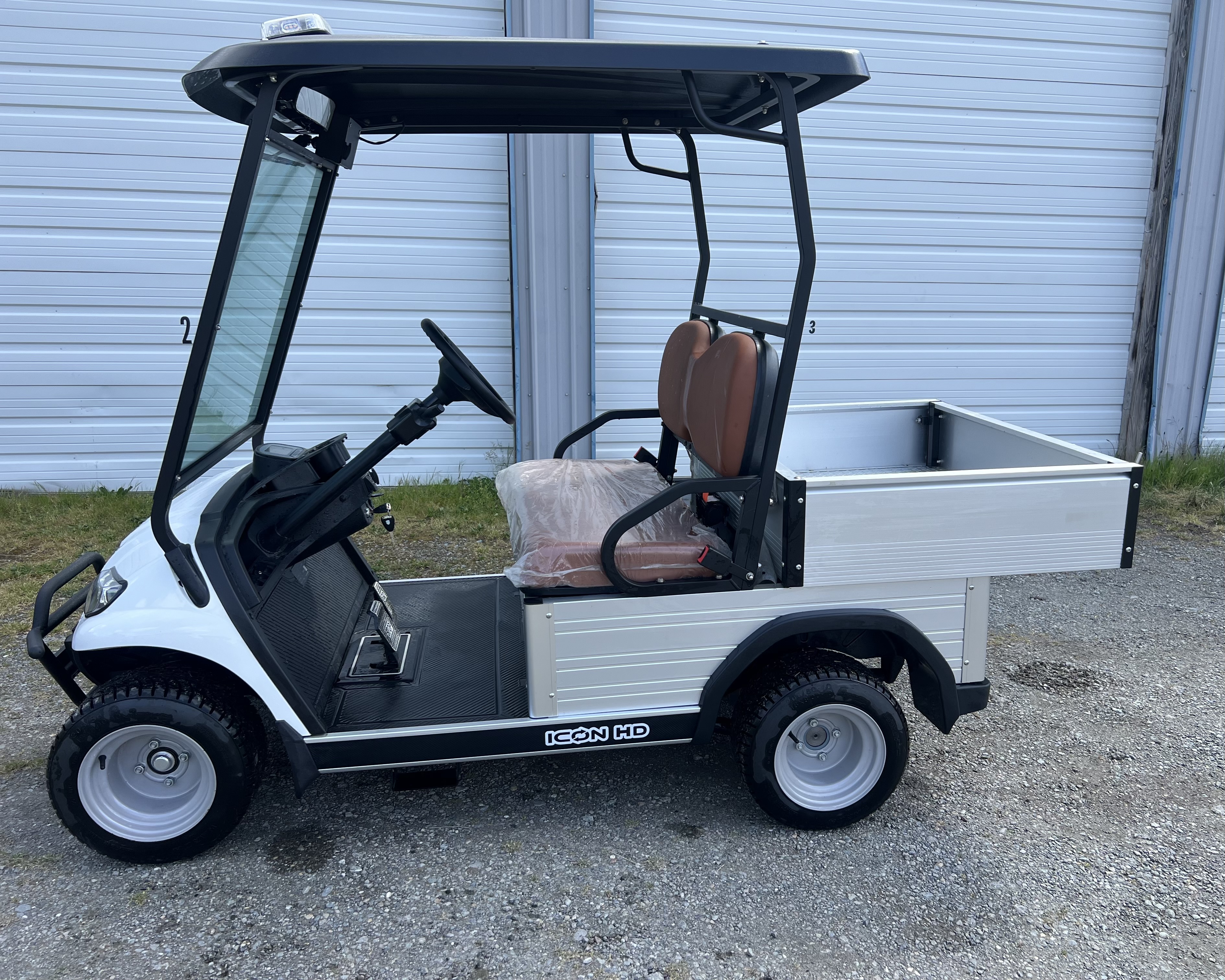

2024  ICON EV  ICON i20S-HD  White

The ICON Heavy Duty i20S-HD is the perfect utility golf cart for any commercial job!

Need help carrying supplies to and from? The i20S-HD is the golf cart you need! Our ICON i20S-HD is extremely versatile with a 3’ Swiss Cargo Box and it comes standard with a 70V/105AH ECO Lithium battery, a 5KW motor, and a 450 AMP controller to guarantee heavy duty performance!

• Colors Available: White

• Street Legal LSV Option: Upgrade Available with 17 Digit VIN

• Steering Mechanism: Self-Adjusting Rack and Pinion

• Suspension (Front/Rear): Heavy Duty Coil Over Shocks

• Tires: DOT 205/50 - 10”/6-ply Tires - Lifted: 23x10.5 4 ply

• Wheels & Tires: Steel Rims Standard with 205/50 - 10”/6-ply Tires

• Drivetrain: 16:1 High Speed Rear Axle

• Ground Clearance: 5” Standard - Lifted: 9”

• Width: 49” Standard

• Total Vehicle Capacity: 2 people

• Warranty: 2 year limited cart warranty. Eco Lithium Battery - 8 year limited

warranty (3 year full / 5 year pro-rated)

• Overall Height: 71” Standard - Lifted: 82”

• Curb Weight: 1440 lbs

• Payload: 500 lbs (excludes passengers)

• Tow Capacity: 2000 lbs

• Turning Radius: 120”

• Overall Dimensions LxWXH: 110inx46inx80in

• Motor Type: 5kW

• Controller: 450 Amp Programmable Controller

• Speed: Standard Speed 19 mph (programmable up to 25 mph)

48-70A Capability

• Battery: 70V/105Ah Eco Lithium

• Charger: Onboard - 15 Amp 120V

• Battery Level Indicator: Digital

• Speedometer Package: Included

• Chassis: Heavy Duty Aluminum Body

• Component Dimensions: 3’ Swiss Box

• Canopy: Top Molded Black Top with High Strength Aluminum Frame

• Water Resistant Seats: Included - Brown

• Metal Front Bumper/Brushguard: Included

• Rear Body Finish: Sturdy Aluminum with 2” Tow Receiver

• Full Light Package: LED Headlights with Hi/Low, Tail Lights,

Brake Lights, Rev Buzzer, Turn Signal

• Seat Belts: Lap Belts - Included

• Hazard Switch: Included

• USB Power Source: Dual, included

• Center Mirror: Included

• Brakes: 4 Wheel Premium Hydraulic Disc Brakes

• Park Brake: Electronic Motor Brake

• Gear Selection: Forward / Neutral / Reverse

• Windshield: Solid AS1 DOT Safety Glass Windshield with Wiper

• LED Safety Light/Strobe with Toggle Switch
