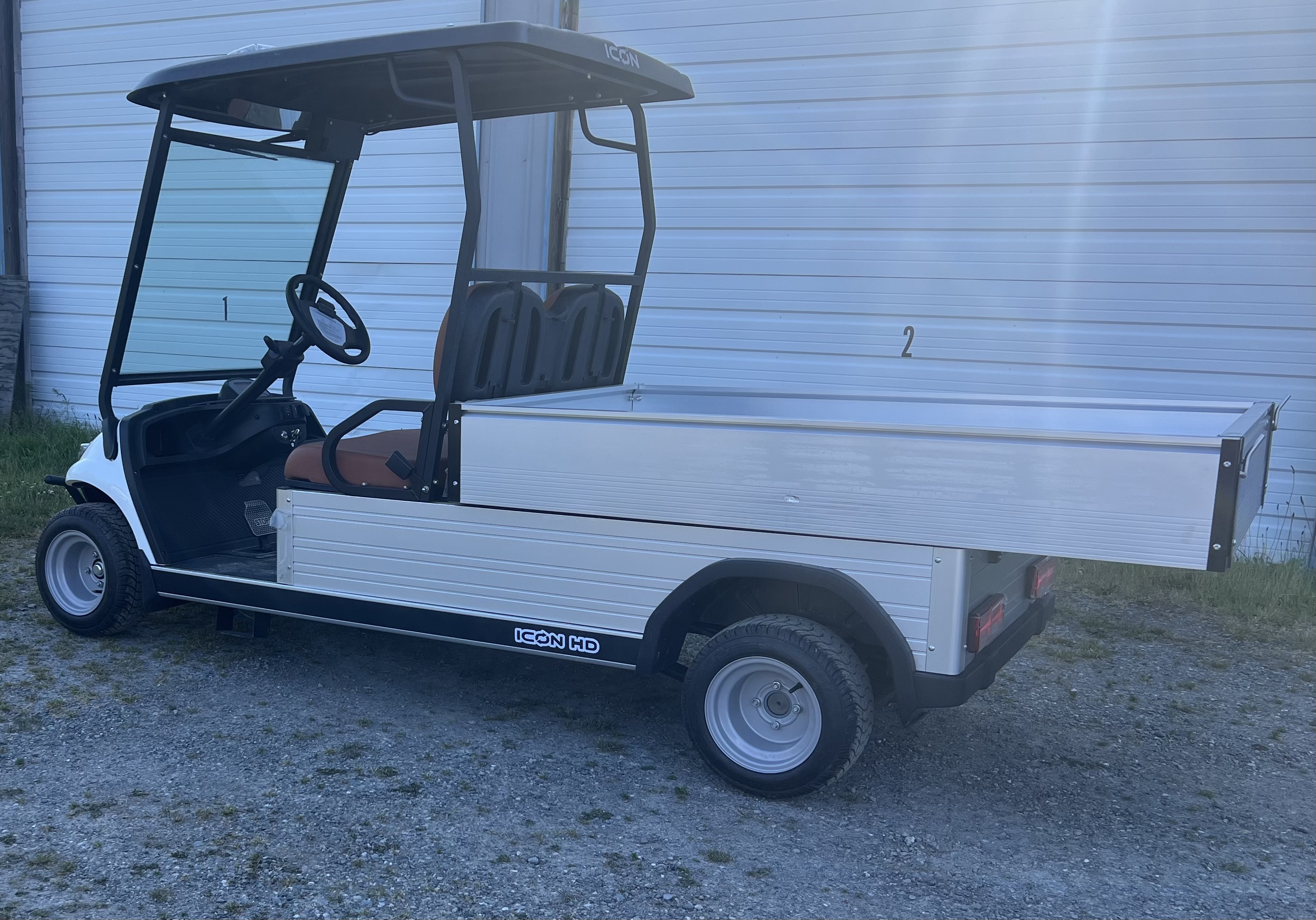

2024  ICON EV  ICON i20U-HD  White

Need a HEAVY DUTY utility golf cart? The ICON i20U-HD is your solution.

Need help carrying heavy landscaping materials or cargo? ICON EV’s HD models offer a robust and more substantial rear suspension that can carry a heavier payload up to 1500 lbs! The ICON i20U-HD is equipped with a 6’ Swiss Cargo Box, 70V/105AH ECO Lithium battery, a 5KW motor & a 450 AMP controller for heavy duty performance!

• Colors Available: White

• Street Legal LSV Option: Upgrade Available with 17 Digit VIN

• Steering Mechanism: Self-Adjusting Rack and Pinion

• Suspension (Front/Rear): Heavy Duty Coil Over Shocks

• Tires: DOT 205/50 - 10”/6-ply Tires - Lifted: 23x10.5 4 ply

• Wheels & Tires: Steel Rims Standard with 205/50 - 10”/6-ply Tires - Lifted: 23x10.5

• Drivetrain: 16:1 High Speed Rear Axle

• Ground Clearance: 5” Standard - Lifted: 9”

• Width: 49” Standard

• Total Vehicle Capacity: 2 people

• Warranty: 2 year limited cart warranty. Eco Lithium Battery - 8 year

limited warranty (3 year full / 5 year pro-rated)

• Overall Height: 71” Standard - Lifted: 82”

• Curb Weight: 1440 lbs

• Payload: 1200 lbs (excludes passengers)

• Tow Capacity: 2000 lbs

• Turning Radius: 120”

• Overall Dimensions LxWXH: 144inx48inx76in

• Motor Type: 5kW

• Controller: 450 Amp Programmable Controller

• Speed: Standard Speed 19 mph (programmable up to 25 mph)

48-70A Capability

• Battery: 70V/105Ah Eco Lithium

• Charger: Onboard - 15 Amp 120V

• Battery Level Indicator: Digital

• Speedometer Package: Included

• Chassis: Heavy Duty Aluminum Body

• Utility Component Dimensions: 6’ Utility Bed

• Canopy: Top Molded Black Top with High Strength Aluminum Frame

• Water Resistant Seats: Included - Brown

• Metal Front Bumper/Brushguard: Included

• Rear Body Finish: Sturdy Aluminum with 2” Tow Receiver

• Full Light Package: LED Headlights with Hi/Low, Tail Lights,

Brake Lights, Rev Buzzer, Turn Signal

• Seat Belts: Lap Belts - Included

• Hazard Switch: Included

• USB Power Source: Dual, included

• Center Mirror: Included

• Brakes: 4 Wheel Premium Hydraulic Disc Brakes

• Park Brake: Electronic Motor Brake

• Gear Selection: Forward / Neutral / Reverse

• Windshield: Solid AS1 DOT Safety Glass Windshield with Wiper

• LED Safety Light/Strobe with Toggle Switch
